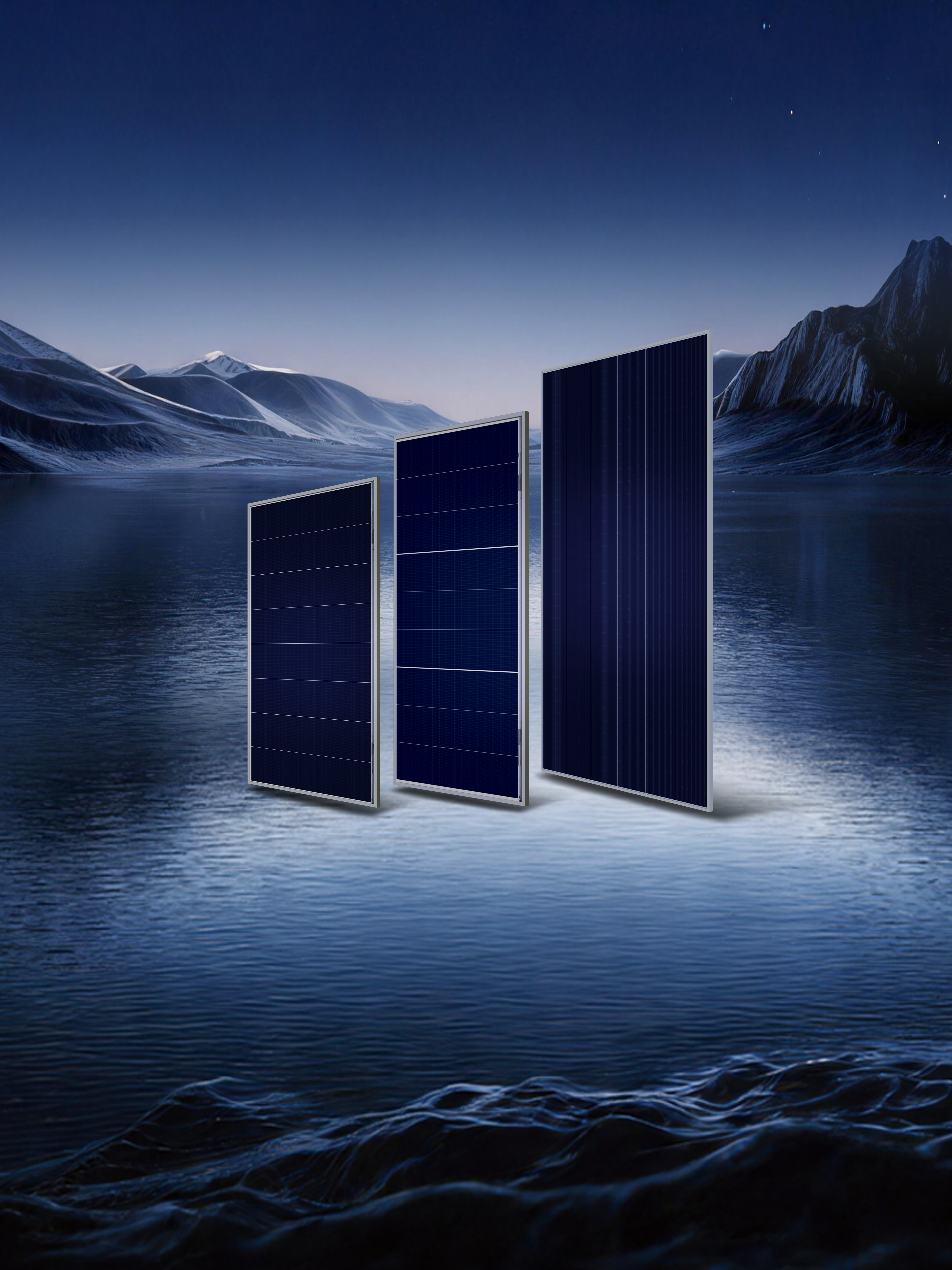

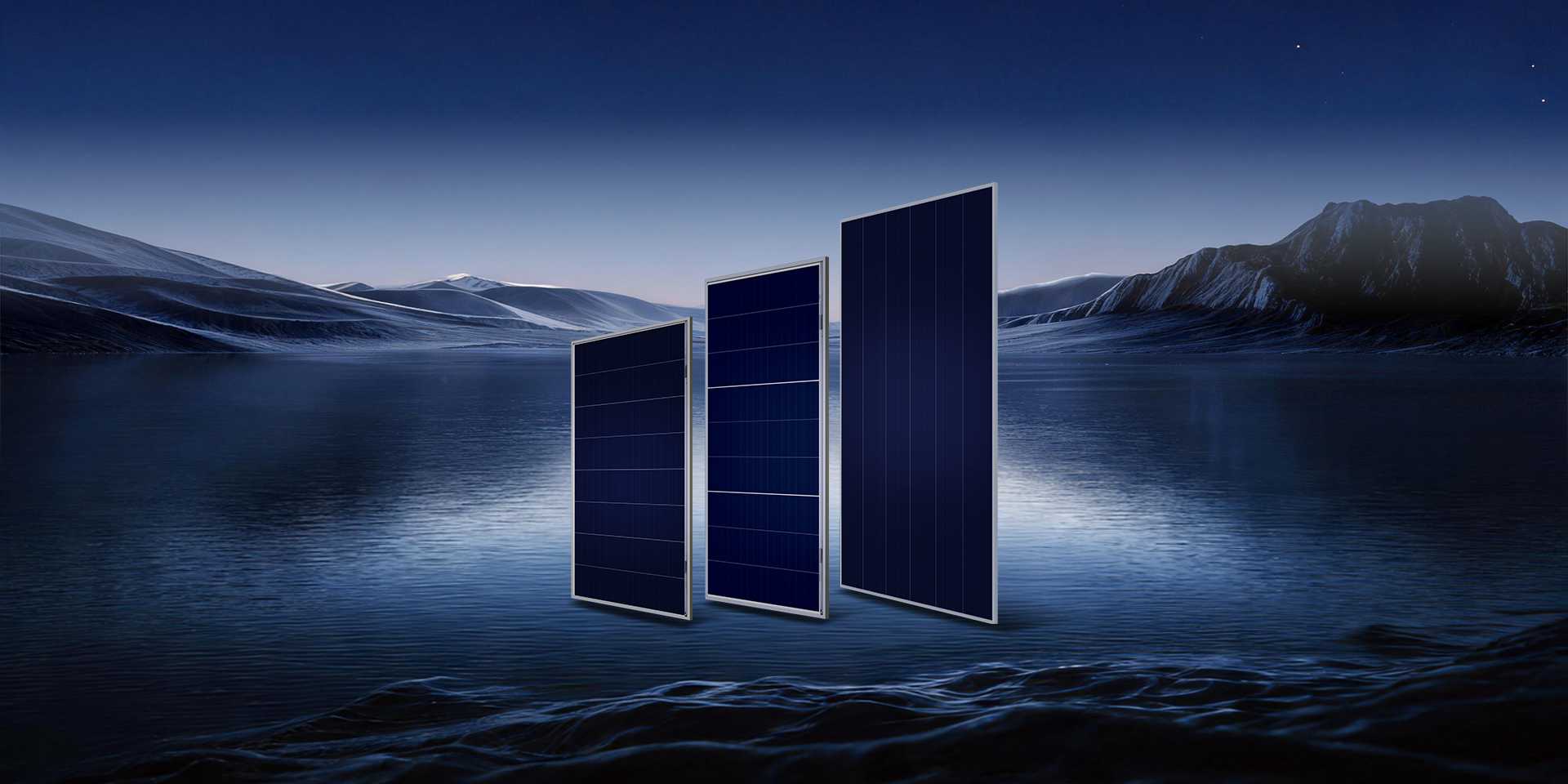

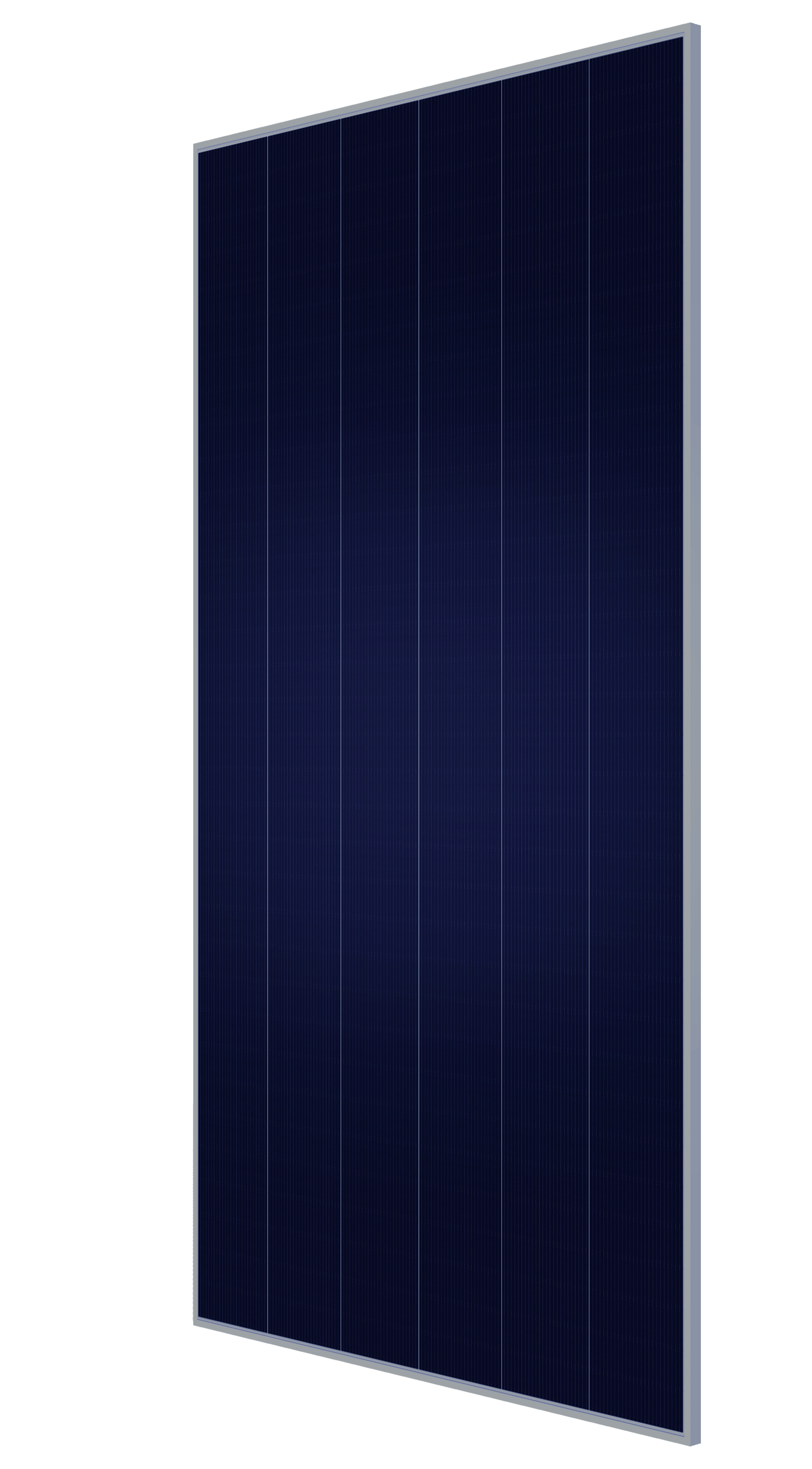

G12 PLUS 1/3-Cut HJT Modules
Dinto Solar G12 PLUS 1/3-cut HJT modules are built on an optimized 210+ large-format cell architecture, enabling higher module area utilization. The cells incorporate the latest bifacial microcrystalline HJT and 0BB technologies, together with advanced innovations including Back Polishing 2.0, low-contact multilayer film structures, low-recombination edge passivation optimization, ICO full-mask edge isolation, and photon sintering, delivering higher conversion efficiency. At the module level, the products integrate advanced IFC lamination, shingled interconnection, and PIB encapsulation technologies, ensuring higher power output and enhanced long-term reliability.
G12 PLUS-128
G12 PLUS-144
G12 PLUS-198
Max. Power
500W
Max. Efficiency
25.0%
Cell Type
HJT Cells
No. of Cells
128 pcs (8x16)
Dimensions
1723X1160X28.5mm
Weight
25.1kg
Max. Power
560W
Max. Efficiency
24.8%
Cell Type
HJT Cells
No. of Cells
144 pcs (9x16)
Dimensions
1936x1166x28.5mm
Weight
28.2kg
Max. Power
770 W
Max. Efficiency
24.8%
Cell Type
HJT Cells
No. of Cells
198 pcs (6x33)
Dimensions
2384x1303x33mm
Weight
37.5 kg
OTHER HJT SOLAR MODULES
G12 HJT Modules
750 W
Max. Power
24.14%
Max. Efficiency
Offshore-PV Modules
750 W
Max. Power
24.14%
Max. Efficiency
Vertical-PV Modules
740 W
Max. Power
23.82%
Max. Efficiency
Copper Grid Modules
760 W
Max. Power
24.47%
Max. Efficiency
